LC single mode duplex fiber optic adaptor sc-type
Home » Products » FTTx Solutions » Fiber optic adaptor » LC single mode duplex fiber optic adaptor sc-type
Share to:

LC single mode duplex fiber optic adaptor sc-type

Delivery Date: 5 days Brand Name: T&J
Model: LC Connector type: SM (blue), MM (aqua), APC (Green)
Material of housing: Plastic Material of sleeves: ceramic
Material of dust cap: plastic Color of dust cap: white
Insertion Loss: <= 0.2dB Mating Durability (1000 cycles): <= 0.2dB
Working Temperature: -40C~+85C Origin: China

LC duplex fiber optic adaptor sc-type

with plastic housing and ceramic sleeves.

The dimension of this LC duplex adaptor is the same as SC simplex adaptor.


Parameters:

• Insertion Loss ≤ 0.2dB

• Mating Durability (1000 cycles): ≤0.2dB

• Working Temperature: -40℃~+85℃

• SM (blue), MM (aqua), APC (Green)

• Duplex

• Plastic housing


Applications:

• Fiber telecommunication system

• Optical fiber sensor

• Optical fiber CATV

• Test instrument

• Accurate mechanical dimensions

• LANs

• Data processing networks

• ODFs


Product images

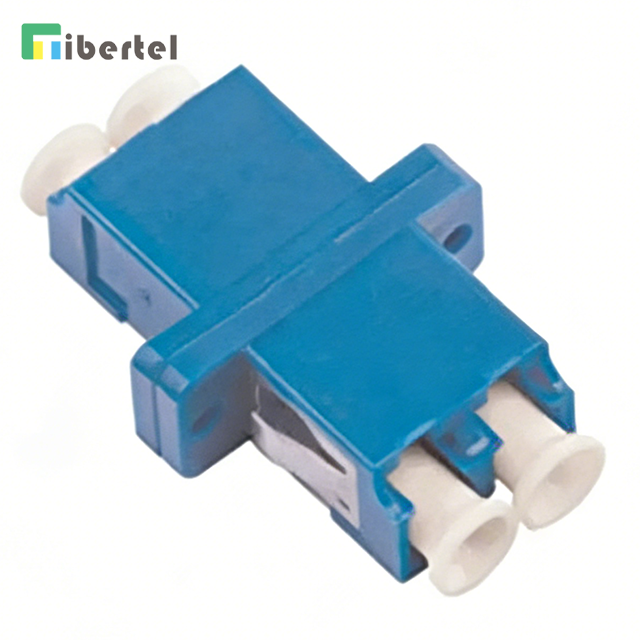

LC SM duplex adaptor sc-type, Blue color:

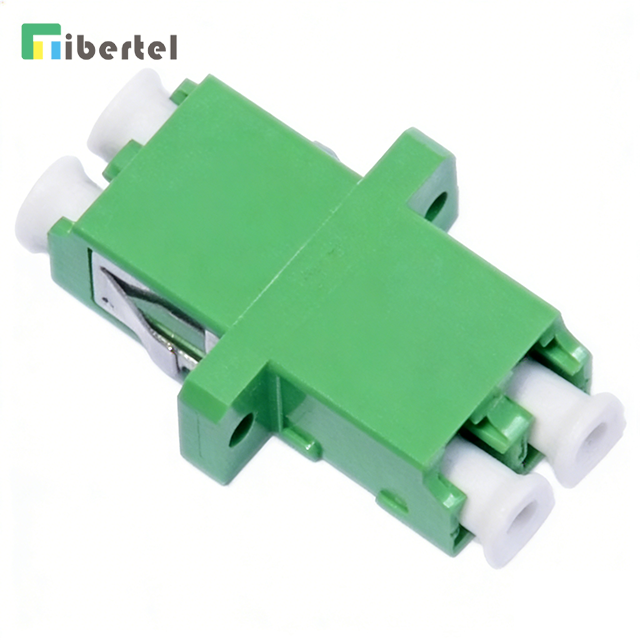

LC/APC duplex adaptor sc-type, Green color:


LC MM duplex adaptor sc-type, Aqua color:


LC series adapters:


Packing of LC duplex adaptors:  25 pieces / packet with testing report.
