GYPFHA-4B6 FTTH duct cable 4 core with 0.5mm FRP strength member
Home » Products » FTTx Solutions » FTTH cable » GYPFHA-4B6 FTTH duct cable 4 core with 0.5mm FRP strength member

PRODUCTS

Share to:

GYPFHA-4B6 FTTH duct cable 4 core with 0.5mm FRP strength member

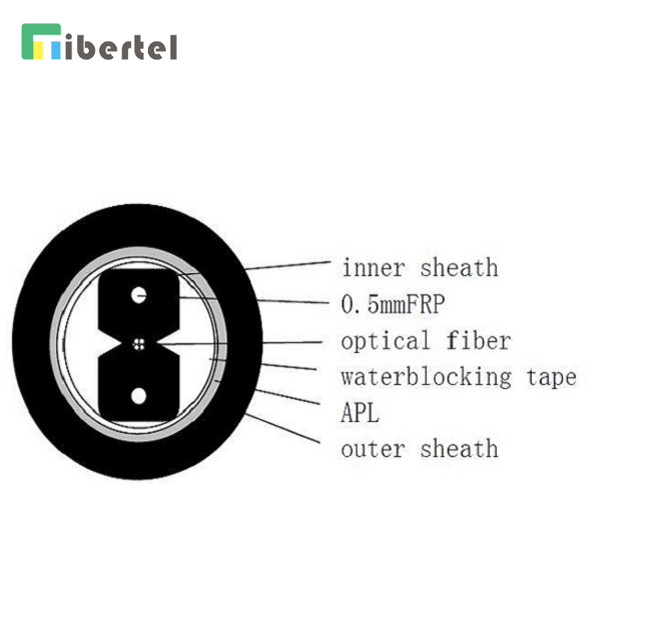

GYPFHA-4B6 FTTH Duct Cable with 4 cores of G.657A fibers, utilized a GJXFH outdoor FTTH cable, protected by a Waterblocking tape & APL, then cabled with a PE outer jacket.
  • GYPFHA-4B6
Availability:
Delivery Date:15-working daysBrand Name:T&J
Part No.:GYPFHA-4B6Fiber type:SM G.657A
Strength member:FRPFiber count:4 fibers
O.D. (mm):6.8mmMaterial of outer jacket:PE
Standard:EU ROHSColor of outer jacket:Black
Cable weight:30 kgs/kmOrigin:China

GYPFHA-4B6  FTTH Duct Cable with 4 cores of G.657A fibers, utilized a GJXFH outdoor FTTH cable, protected by a Waterblocking tape & APL, then cabled with a PE outer jacket.


Applications:

Used in FTTH duct installation.

Application of FTTH outdoor duct cable


Features:

Completely protected the FTTH indoor cables from the duct installation.

Easy connect without splicing, fast and convenient.

Non-metallic strength member is Kevlar fiber reinforced plastic known as K-FRP.

Flame retardant LSZH inner jacket meets relevant fire protection requirements in indoor environment.

Optical fiber meets standard ITU-T G657


Technical Parameters(Typical Values):

ItemTechnology   Parameter
Cable typeGYPFHA-1B6GYPFHA-2B6GYPFHA-4B6
Materail of   Strength member0.5mm FRP
Fiber colorNatureNature,BlueNature,Blue,Orange,Green
Fiber typeG.657A  (9/125)
Inner sheath   colorBlack
Inner sheath   materialLSZH
Inner cable   dimension (mm)3.0(±0.1)*2.0(±0.1)
Cable   diameter (mm)6.8±0.2
Outer sheath   materialPE
Cable weight   (Kg/km)30
Min. bending   radius (mm)10D
Attenuation   (dB/km)≦ 0.4 at 1310nm,≦ 0.3 at 1550nm
Short tension   N80
Short crush   N/100mm1500
Operation   temperature ℃.-10~+60
    Relative to 20℃,fiber   additional attenuation ≤0.3dB/km
    -40~+60
    Relative to 20℃,fiber   additional attenuation ≤0.4dB/km


Ordering Information:

1) Fiber Count: 1/2/4 fibers of G.657A

2) Cable Printing: Model + FTTH Duct Cable + Fiber type + Length mark. Or on request.

3) Packing: 1km /drum, OEM brand or LOGO available to printed on the drum
