FC-MU hybrid fiber adaptor simplex
Home » Products » FTTx Solutions » Fiber optic adaptor » FC-MU hybrid fiber adaptor simplex
Share to:

FC-MU hybrid fiber adaptor simplex

Delivery Date: 7-working days Brand Name: T&J
Model: FC-MU Material of housing: Metallic
Material of sleeves: ceramic Material of dust cap: plastic
Color of dust cap: black / blue / green / beige Insertion Loss: <= 0.2dB
Mating Durability (1000 cycles): <= 0.2dB Working Temperature: -40C~+85C
Origin: China

FC-MU Simplex Hybrid Fiber Adapter


Description:

The fiber optic adaptor kits offer an ideal product for application requiring cable-to-cable connections. It can be in standard and hybrid type for most popular connectors including FC, SC, LC, ST, MU, MTRJ, E2000, DIN and MPO.

An adapter is a mechanical device designed to align fiber-optic connectors. It contains the interconnect sleeve, that holds the two ferrules together.

Hybrid fiber optic adapters offer a solution for hybrid applications where the two different kinds of fiber connectors or cable assemblies need to be linked with each other.


Features:

Excellent changeability and directivity
100% Optic test (Insertion Loss)
Ceramic and phosphor bronze sleeve tube optional
Accurate external size
Individually packaged



Applications:

Fiber optic transmission system
CATV networks
LAN Testing/Measurement Instruments
Fiber distribution frame, Mounts in Fiber Optic Wall Mount and Rack Mount Cabinets


Specifications

Parameter

Unit

LC,SC,FC,MU,ST, SC-ST,FC-ST,  FC-SC,   FC-LC, FC-MU

MTRJ

E2000

SM

MM

SM

MM

SM

PC

UPC

APC

PC

PC

UPC

PC

PC

APC

Insertion Loss (Typical)

db

≤0.3

≤0.2

≤0.3

≤0.2

≤0.3

≤0.2

≤0.2

≤0.2

≤0.3

Return   Loss

db

≥45

≥50

≥60

≥30

≥45

≥50

≥35

≥55

≥75

Exchangeability

db

≤0.2

≤0.2

≤0.2

Repeatability

db

≤0.2

≤0.2

≤0.2

Durability

time

>1000

>1000

>1000

Operating   Temperature

-40~+75

-40~+75

-40~+75

Storage   Temperature

-45~+85

-45~+85

-45~+85

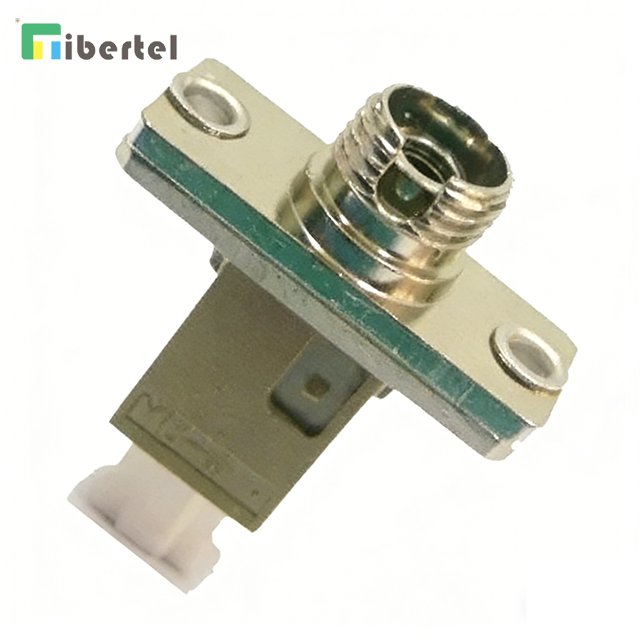

Product image:


FC-MU hybrid adaptor






FC-MU Hybrid Fiber Adapter
