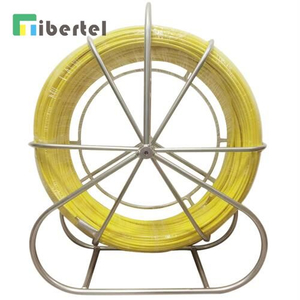

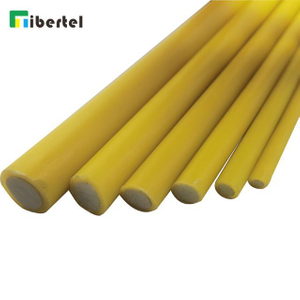

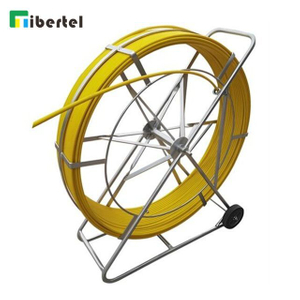

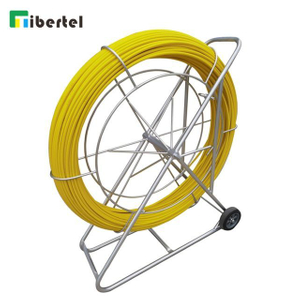

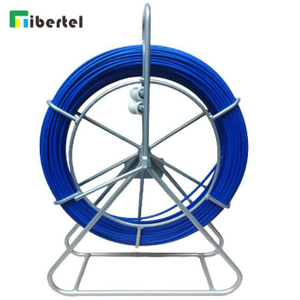

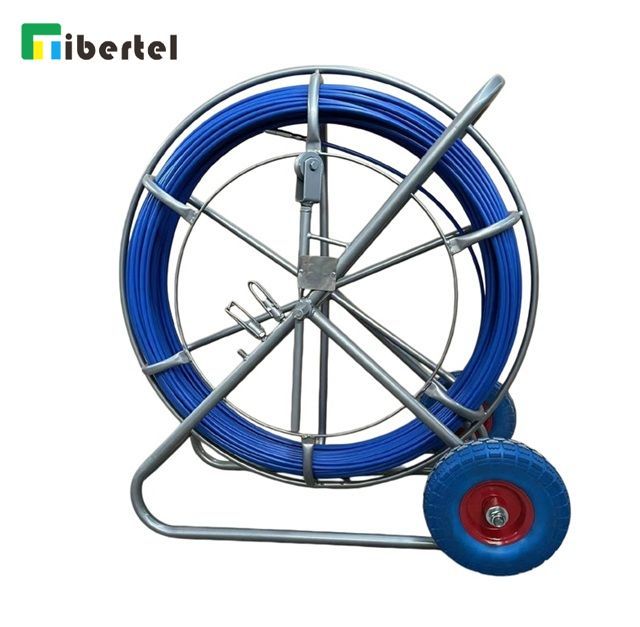

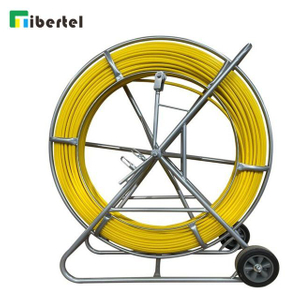

The Continuous duct rods is an excellent auxiliary tool for pulling the guide rope in the pipeline. The smooth and elastic surface allows the rods to easily pass through narrow passages.
The rods has the advantages of time saving, labor saving, and improved work efficiency. It can be used for the cleaning of telecommunication pipes and the laying of optical cables, cables, and plastic sub-tubes.
1. High tensile strength and strong bending performance, can shuttle freely in narrow pipes.
2. Equipped with anti-rust towing head.
3. Strong anti-aging performance.
4. Simple maintenance.
5. Equipped with movable portable bracket, easy to move.
|Rods diameter (mm)||Φ4mm, 4.5mm, 6mm, 8mm, 9mm, 11mm, 12mm, 13mm, 14mm, 15mm, 16mm, 18mm|
|Length of rods (mtr)||50~500|
|Linear density (g/m)||24~350|
|Min. bending radius (mm)||5~32|
|Tensile force (Kn)||2~30|
|Material of inner core||FRP glassfiber|
|Material of outer jacket||PP|
|Color of outer jacket||Yellow, orange, blue, red, green, or customized available|
|Material of bracket||Galvanized tube|
|Material of guide tips||Gavanlnized iron or Copper|
