CAT.7 S/FTP LAN cable 4Pairs PVC Sheath

Delivery Date: 35-working days Application: Networking
Type: Others Brand Name: T&J
Weight: pending Number of Conductors: 4pairs
Nominal Outer Diameter: 7.9±0.5 mm Operating Temperature: -30C~+50C
Cable type: CAT.7 S/FTP Conductor: Bare solid copper conductor
Nom.O.D.(mm): 0.58mm+-0.005 External O.D.: 7.9±0.5 mm
Outer Jacket material: PVC or LSZH Packing length: 305meters or on request
Rated temperature: 60C, 75C, 90C Reference Standard: UL444,UL1581 ,UL1666
Test Standard: ISO/IEC 61156-5; EN 50288-4 ,YD/T1019 Origin: China

S/FTP 4Pairs cable category 7, PVC Sheath


Product Description:

Rated temperature:60℃,75℃,90℃

Reference Standard:UL444,UL1581 ,UL1666

Bare solid copper conductor

Rohs/REACH complied PVC Jacket

Flame Test::CMX,CM,CMR

Installation temperature:-30℃~+50℃


Application:

Volp , ISDN

Token , 100M TP-PDM

Analong and Data Video

TR-16 Active And Passive

155M/662m/1.2GATM

IEEE802.3:100Bease;100Base-T 1000Base-T 10GBase-T


CAT7 S/FTP LAN Cable


Outer jack can be in PVC material or LSZH material

Jacket color: Grey, Blue, Green, Red, Black, Orange or on request




Packing: 305 meters per drum or on request





Content of the Data Sheet

Sheath Printing:  DATA CABLE S/FTP CAT7 4/23AWG PVC ****m

Category:  S/FTPCAT74PPVCAM40

Test Standard:  ISO/IEC 611565; EN502884,YD/T1019

Conductor /Material: SOLID-Bare Copper (Dia.0.58mm +-0.005)

Insulation / Material: Skin-foam-skin PE (Dia.1.35mm +-0.05)

Inner Screening Material: Aluminum Foil

Drain Wire: No

Outer Screening Material: Aluminum-magnesium alloy 0.12mm

Coverage: =>40%


Sheath

Thickness: 0.55+-0.05mm

External O.D.: 7.9+-0.5mm

Surface: Clean

Material: PVC (complies RoHS)

Color: According to the requires


Surface Printing
Letter height: 3.0+-0.3mm

Color: Black

Print error & Space: <= +-0.5%, 1m

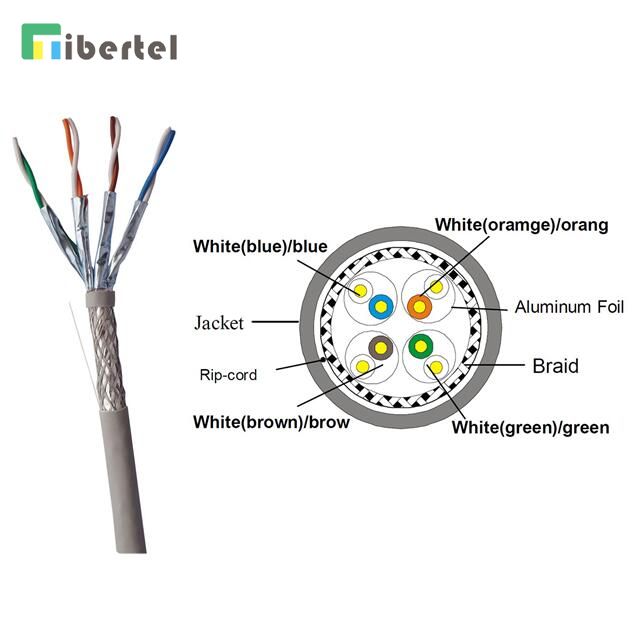

Core Color:

1-White/BLue

2-White/Orange

3-White/Green

4-White/Brown


Packing: Wooden Tray & Carton

Packing Length: 305+-1.0mm or on request

Rip-cord: Yes


Sheath Physical Properties

Before Aging Tensile Strength (Mpa) =>10.0

             Elongation =>125%

Aging Period(Cxhrs): 100C x24hx7d

After Aging  Tensile Strength (Mpa) =>8

             Elongation: =>100%

Cold bend (-20+-2C x4h)   8 Cable o.D., No visible cracks


Electrial Characteristics (20C)

Impedance(Ω):  (1-100MHz) 100+-15Ω

                (100-250MHz) 100+-18Ω

                (250-600MHz) 100+-25Ω

Delay Shew (ns/100m)  <=25

Velocity of Propagation: 70%

Unbalanced-to-ground  capacitance (pf/100m) max 330

DC Resistance (Ω/100m)  max 9.5

DC Conductor Resistance Unbalanc (%) max 2.0


Technical Performance   (100m):
Frequency   RL  ATT  NEXT  PHASE DELAY
(MHz)  ≥dB  ≤dB  ≥dB  ≤ns
4 23 3.74 78 552
8 24.5 5.24 78 546.7
10 25 5.86 78 545.4
16 25 7.41 78 543
20 25 8.29 78 542
25 24.3 9.29 78 541.2
31.25 23.6 10.41 78 540.4
62.5 21.5 14.88 75.5 538.6
100 20.1 19.02 72.4 537.6
150 18.9 23.56 69.8 536.9
200 18 27.47 67.9 536.5
250 17.3 30.97 66.4 536.3
300 17.3 34.19 65.2 536.1
600 17.3 50.1 60.7 535.5





Frequency  PSNEXT  ELFEXT  PSELFEXT
(MHz)  ≥dB  ≥dB  ≥dB
4 75 78 75
8 75 75.9 72.9
10 75 74 71
16 75 69.9 66.9
20 75 68 65
25 75 66 63
31.25 75 64.1 61.1
62.5 72.5 58.1 55.1
100 69.4 54 51
150 66.8 50.2 47.2
200 64.9 48 45
250 63.4 46 43
300 62.2 44.5 41.5
600 57.7 38.4 35.4


CAT.7 S/FTP LAN Cable 4Pairs
