19" Rack Mounted fiber optic indoor terminal box
Home » Products » FTTx Solutions » Fiber optic terminal box » 19" Rack Mounted fiber optic indoor terminal box

PRODUCTS

Share to:

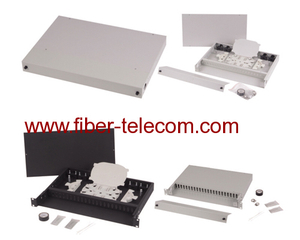

19" Rack Mounted fiber optic indoor terminal box

Availability:
Delivery Date:20 daysBrand Name:T&J
Model No:TB03B1UDimension:485*300*42.5mm
Weight:3.45kgs include the accessoriesCapacity:1U for 24-fibers (It can be provided up to 6U -144 fibers.)
Material of patch panel:Cold Rolled Steel 1.2mmColor:Black and Ivory white
Application:Indoor installationAdaptor:SC, LC, FC, ST etc.
Environmental Temperature:-25℃~ +55℃Origin:China

Dimension: 485x300x42.5mm

Weight: 3.45kgs include the accessories

Capacity: 1U for 24-fibers (It can be provided up to 6U -144 fibers.)

Material of patch panel: Cold Rolled Steel

Thickness: 1.2mm

Color: Black and Ivory white available.

Standard Accessories:

Cable trays, Adaptor panels (type on request), Splice sleeves, Cable ties, Insulation tape, Panel holder and Screws.



Specifications:

19" standard installation interface.

The box use good quality Cold Rolled Steel material,.

Surface with Electrostatic Spray.

Fiber core available in 8-144 fibers, trays available to add as per requested.

Available for bunchy and ribbon cables.

Available for LC, SC, FC, ST, MU, MTRJ and E2000 adaptors.

Enough space for operating.



Operation Conditions:

Working temperature: -25℃~ +55℃

Relative humidity: = 85% (30℃)

Atmosphere pressure: 70 ~ 106Kpa

Insulation resistance: ≥2x104MΩ / 500VDC


LOGO printed is acceptable.


Type

TB03A

TB03B

TB03C

TB03D

Fiber trays

6 fiber / 12 fiber / 24 fiber

Working temperature

-25℃~ +55℃

Dimension(mm)

485x300x1U/2U

485x300x1U/2U

482x290x1U

482x290x1U

Max capacity(core)

96

96

48

48

Weight(kg)

3.45-5kg

3.45-5 kg

3.45 kg

3.45kg
