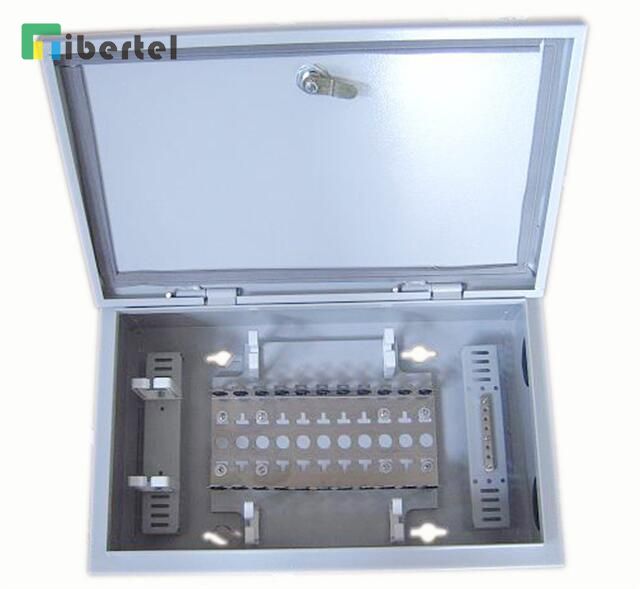

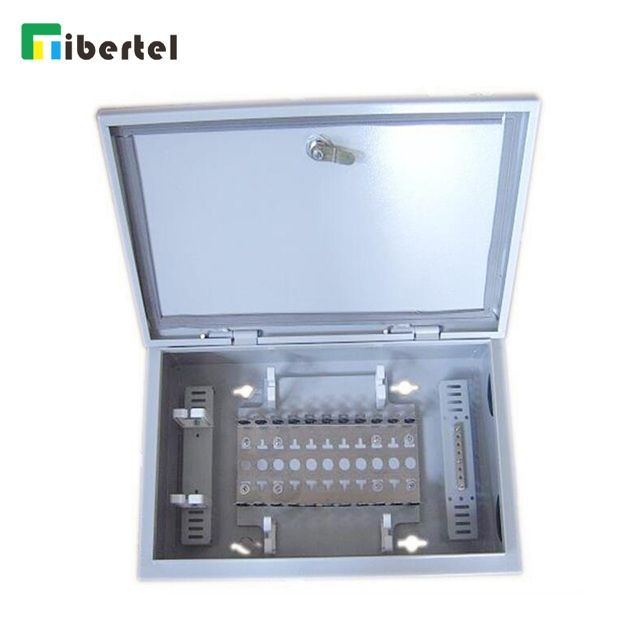

100 pair MDF Distribution Box
Model: TLD100/TJ03CA010
Description: 100P MDF Distribution Cabinet with lock
Material : Cold Rolled Steel
Capacity: 100 pair
Size: 280*430*150mm
Ordering Information:
Part No. | Capacity | Dimension |
TLD100 | 100 pair | 280*430*150mm |
TLD200 | 200 pair | 280*680*150mm |
TLD200A | 200 pair | 500*430*150mm |
TLD340 | 340 pair | 1100*280*150mm |
TLD400 | 400 pair | 1100*280*150mm |
TLD400A | 400 pair | 500*680*150mm |
TLD600 | 600 pair | 500*900*150mm |
TLD680 | 680 pair | 1100*500*150mm |
TLD800 | 800 pair | 1100*500*150mm |
TLD1020 | 1020 pair | 1100*720*150mm |
TLD1200 | 1200 pair | 1100*720*150mm |
TLD1400 | 1400 pair | 1300*720*150mm |
TLD2400 | 2400 pair | (1100+350)*750*320mm |
