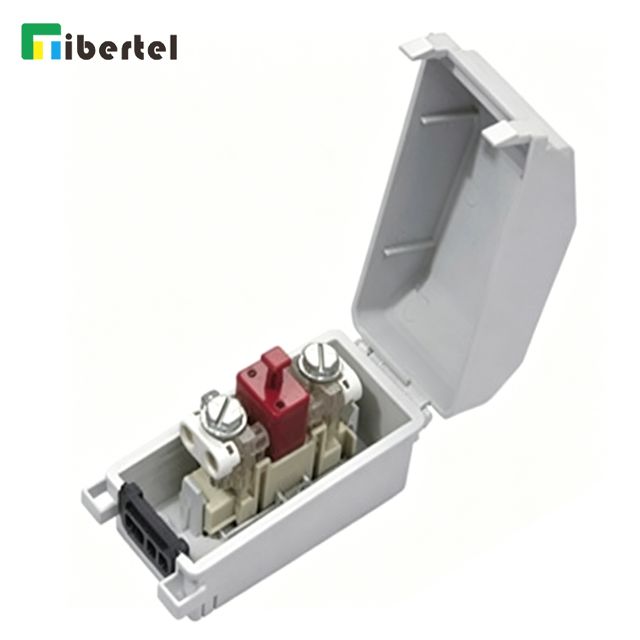

Description:
Part No.: TLD047/TJ03B3001
Type: STB box 1 pair
Material of Box: ABS plastic
Material of subrack: Stainless steel
Capacity: 1 pair
Size: 95*45*50mm
Features:
The connection boxes designed to be loaded with LSA Modules, the modules can be ordered separately or completed on request.
Inside subracks made of stainless steel.
The cover is secured by toolless screws. Supplied with 4 jumper rings and earth post.
Specifications:
Part No.: | Description | Size |
TLD047 | 1 pair STB box | 95*45*50mm |
TLD048 | 2 pairs STB box | 105*65*60mm |
TLD049 | 2 pairs water proof type STB box | 145*95*55mm |
TLD050 | 2 pair distribution box | 150*100*60mm |
TLD051 | 4 pair DP box | 180*140*70mm |
TLD052 | 10 pair outdoor DP box | 195*195*85mm |
TLD054 | 10 pair outdoor DP box | 300*140*90mm |
TLD055 | 12 pair outdoor DP box | 255*200*85mm |
TLD056 | 20 pair outdoor DP box | 350*190*95mm |
TLD058 | 20 pair outdoor DP box | 260*210*80mm |
TLD072 | 50 pair outdoor DP box | 195*195*95mm |
TLD073 | 100 pair outdoor DP box | 350*190*95mm |
TLD061 | 10 pair distribution box with module | 165*85*55mm |
TLD062 | 20 pair distribution box with module and grounding device | 170*120*35mm |
TLD063 | 30 pair distribution box,snap lock | 150*105*55mm |
