Description

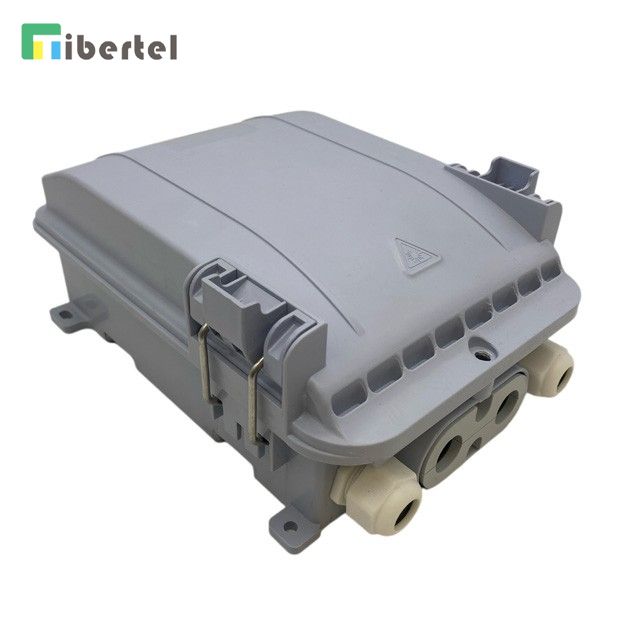

External Fiber Terminal Box 12F Small Size TJ01E12SM is new design by Fibertel in 2024, it is used as a termination point for the feeder cable to connect with the drop cable in the FTTx communication network system. The fiber splicing and termination can be done in this box, Flip-up cover design with IP65 protection.
Features
Small size.
Anti-UV (Ultraviolet).
Fit cord cable/ patch cord / drop fiber output.
Easy to maintain and extend the capacity.
Applications
FTTH access network
Telecommunication network
CATV networks
Data communications network
Local area networks
Specifications
Model | TJ01E12SM |
Installation Method | Wall Mounted/Pole Mounted |
Color | Black/Gray on or request |
Material | PC+ABS or ABS |
Capacity of Splicing | 48 fibers |
| PLC/Adapter Capacity | 16 Ports |
Cable Entry Ports | 2 Ports |
Adapter Type | SC |
IP Grade | IP 65 |
| Weight | 0.57kgs |
Size: H×W×D (mm) | 230×165×95mm |
